BV-FA06ZD

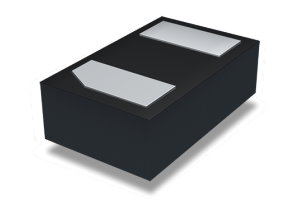

Bencent ESD BV-FA06ZD
Model
:
BV-FA06ZD
Catalogue
BV-FA06ZD Catalogue English (Download)
Add to Basket
In your cart
Add to Basket
Contact us about this product
Description
Description
Manufacturer
Bencent
Model
BV-FA06ZD
Overvoltage Protection Components
Protection Devices (ESD)
Repetitive Peak Off-State Voltage (VDRM)
6.0V
Maximum Repetitive Peak Off-State Current (IDRM 25℃)
1.0μA
Minimum Breakdown Voltage (VBR)
7.2V
Maximum Reverse Leakage Current (IR)
1mA
Clampling Voltage (VC)@IPP
10V @ 1A
Maximum Clampling Voltage (VC)@IPP
15V @ 21A
Capacitance @0V 1MHZ Max
180pF
Surge Waveform
8/20μs
Peak Pulse Power (PPP)
315W
Package
DFN1006-2
Mark
7Q
Body Length (L)
1.0mm
Body Width (W)
0.6mm
Body Height (H)
0.5mm
Min. Packaging (Pcs)
10000
