BV-E505U2A

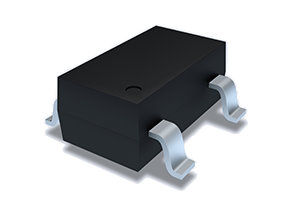

Bencent ESD BV-E505U2A
Model
:
BV-E505U2A
Catalogue
BV-E505U2A Catalogue English (Download)
Add to Basket
In your cart
Add to Basket
Contact us about this product
Description
Description
Manufacturer
Bencent
Model
BV-E505U2A
Overvoltage Protection Components
Protection Devices (ESD)
Repetitive Peak Off-State Voltage (VDRM)
5.0V
Maximum Repetitive Peak Off-State Current (IDRM 25℃)
1.0μA
Minimum Breakdown Voltage (VBR)
6.0V
Maximum Reverse Leakage Current (IR)
1mA
Clampling Voltage (VC)@IPP
12V @ 1A
Maximum Clampling Voltage (VC)@IPP
25V @ 4A
Capacitance @0V 1MHZ Max
0.8pF
Surge Waveform
8/20μs
Peak Pulse Power (PPP)
100W
Package
SOT523
Mark
P5
Body Length (L)
1.6mm
Body Width (W)
0.8mm
Body Height (H)
0.8mm
Min. Packaging (Pcs)
3000
