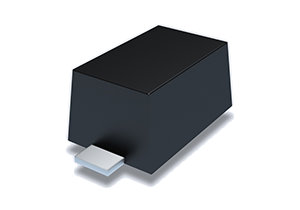

BV-D505ZCA
Bencent ESD BV-D505ZCA
Model
:
BV-D505ZCA
Catalogue
BV-D505ZCA Catalogue English (Download)
Add to Basket
In your cart
Add to Basket
Contact us about this product
Description
Description
Manufacturer
Bencent
Model
BV-D505ZCA
Overvoltage Protection Components
Protection Devices (ESD)
Repetitive Peak Off-State Voltage (VDRM)
5.0V
Maximum Repetitive Peak Off-State Current (IDRM 25℃)
1.0μA
Minimum Breakdown Voltage (VBR)
5.8V
Maximum Reverse Leakage Current (IR)
1mA
Clampling Voltage (VC)@IPP
9.8V @ 1A
Maximum Clampling Voltage (VC)@IPP
15V @ 20A
Capacitance @0V 1MHZ Max
30pF
Surge Waveform
8/20μs
Peak Pulse Power (PPP)
300W
Package
SOD523
Mark
C
Body Length (L)
1.2mm
Body Width (W)
0.8mm
Body Height (H)
0.6mm
Min. Packaging (Pcs)
3000
