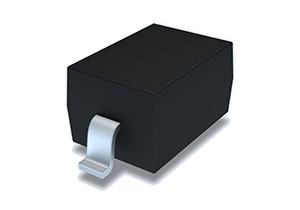

BV-D312UCE
Bencent ESD BV-D312UCE
Model
:
BV-D312UCE
Catalogue
BV-D312UCE Catalogue English (Download)
Add to Basket
In your cart
Add to Basket
Contact us about this product
Description
Description
Manufacturer
Bencent
Model
BV-D312UCE
Overvoltage Protection Components
Protection Devices (ESD)
Repetitive Peak Off-State Voltage (VDRM)
12V
Maximum Repetitive Peak Off-State Current (IDRM 25℃)
1.0μA
Minimum Breakdown Voltage (VBR)
13.5V
Maximum Reverse Leakage Current (IR)
1mA
Clampling Voltage (VC)@IPP
18.3V @ 1A
Maximum Clampling Voltage (VC)@IPP
34V @ 13.5A
Capacitance @0V 1MHZ Max
2.0pF
Surge Waveform
8/20μs
Peak Pulse Power (PPP)
459W
Package
SOD-323
Mark
DK
Body Length (L)
1.6mm
Body Width (W)
1.3mm
Body Height (H)
1.2mm
Min. Packaging (Pcs)
3000
