BV-D120ZCF

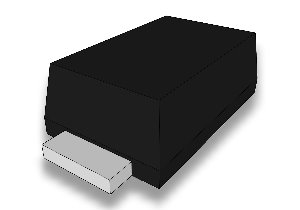

Bencent TVS BV-D120ZCF
Model
:
BV-D120ZCF
Catalogue
BV-D120ZCF Catalogue English (Download)
Add to Basket
In your cart
Add to Basket
Contact us about this product
Description
Description
Manufacturer
Bencent
Model
BV-D120ZCF
Overvoltage Protection Components
Transient Voltage Suppressor (TVS)
Type
Bi
Repetitive Peak Off-State Voltage (VDRM)
20V
Maximum Repetitive Peak Off-State Current (IDRM 25℃)
1.0μA
Minimum Breakdown Voltage (VBR)
22.2V
Maximum Breakdown Voltage (VBR)
24.5V
Maximum Reverse Leakage Current (IR)
1.0mA
Maximum Clampling Voltage (VC)@IPP
32.4V @ 6.2A
Surge Waveform
10/1000μs
Peak Pulse Power (PPP)
200W
Package
SOD123F
Mark
BV
Body Length (L)
3.7mm
Body Width (W)
1.8mm
Body Height (H)
1.0mm
Min. Packaging (Pcs)
3000
