BV-D111ZCF

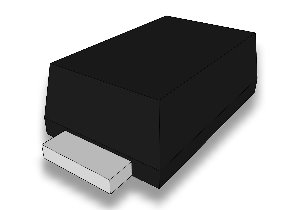

Bencent TVS BV-D111ZCF
Model
:
BV-D111ZCF
Catalogue
BV-D111ZCF Catalogue English (Download)
Add to Basket
In your cart
Add to Basket
Contact us about this product
Description
Description
Manufacturer
Bencent
Model
BV-D111ZCF
Overvoltage Protection Components
Transient Voltage Suppressor (TVS)
Type
Bi
Repetitive Peak Off-State Voltage (VDRM)
11V
Maximum Repetitive Peak Off-State Current (IDRM 25℃)
3.0μA
Minimum Breakdown Voltage (VBR)
12.2V
Maximum Breakdown Voltage (VBR)
13.5V
Maximum Reverse Leakage Current (IR)
1.0mA
Maximum Clampling Voltage (VC)@IPP
18.2V @ 11A
Surge Waveform
10/1000μs
Peak Pulse Power (PPP)
200W
Package
SOD123F
Mark
AZ
Body Length (L)
3.7mm
Body Width (W)
1.8mm
Body Height (H)
1.0mm
Min. Packaging (Pcs)
3000
