BV-5SMDJ30A

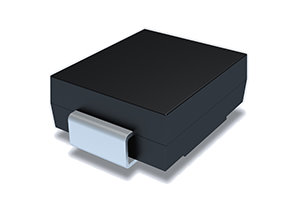

Bencent TVS BV-5SMDJ30A
Model
:
BV-5SMDJ30A
Catalogue
BV-5SMDJ30A Catalogue English (Download)
Add to Basket
In your cart
Add to Basket
Contact us about this product
Description
Description
Manufacturer
Bencent
Model
BV-5SMDJ30A
Overvoltage Protection Components
Transient Voltage Suppressor (TVS)
Type
Uni
Repetitive Peak Off-State Voltage (VDRM)
30V
Maximum Repetitive Peak Off-State Current (IDRM 25℃)
2.0μA
Minimum Breakdown Voltage (VBR)
33.3V
Maximum Breakdown Voltage (VBR)
36.8V
Maximum Reverse Leakage Current (IR)
1.0mA
Maximum Clampling Voltage (VC)@IPP
48.4V @ 103A
Surge Waveform
10/1000μs
Peak Pulse Power (PPP)
5000W
Package
SMC
Mark
5D30
Body Length (L)
8.25mm
Body Width (W)
6.15mm
Body Height (H)
2.95mm
Min. Packaging (Pcs)
3000
