BV-3304P8

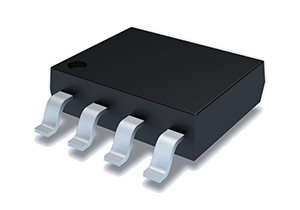

Bencent ESD BV-3304P8
Model
:
BV-3304P8
Catalogue
BV-3304P8 Catalogue English (Download)
Add to Basket
In your cart
Add to Basket
Contact us about this product
Description
Description
Manufacturer
Bencent
Model
BV-3304P8
Overvoltage Protection Components
Protection Devices (ESD)
Repetitive Peak Off-State Voltage (VDRM)
3.3V
Maximum Repetitive Peak Off-State Current (IDRM 25℃)
0.1μA
Minimum Breakdown Voltage (VBR)
3.5V
Maximum Reverse Leakage Current (IR)
1mA
Clampling Voltage (VC)@IPP
5.8V @ 1A
Maximum Clampling Voltage (VC)@IPP
18V @ 25A
Capacitance @0V 1MHZ Max
2.0pF
Surge Waveform
8/20μs
Peak Pulse Power (PPP)
450W
Package
SOP8
Mark
LC33
Body Length (L)
4.9mm
Body Width (W)
3.9mm
Body Height (H)
1.5mm
Min. Packaging (Pcs)
2500
