Protect Components
Overvoltage Protection Components
Metal Oxide Varistors (MOV)

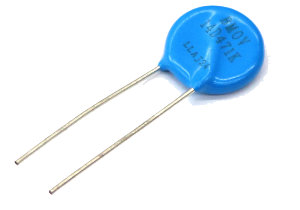

BMOV14D561K
Bencent MOV BMOV14D561K
Model
:
BMOV14D561K
Catalogue
BMOV14D561K Catalogue English (Download)
Add to Basket
In your cart
Add to Basket
Contact us about this product
Description
Description
Manufacturer
Bencent
Model
BMOV14D561K
Overvoltage Protection Components
Metal Oxide Varistors (MOV)
Type
Normal Energy
Maximum Allowable Voltage VAC
350V
Maximum Allowable Voltage VDC
460V
Varistor Voltage 1mA
560(504~616)V
Maximum Clamping Voltage IP
50A
Maximum Clamping Voltage VC
925V
Withstanding Surge Current
4500A
Maximum Energy 10/1000μs
125J
Rated Power
0.6W
Typical Capacitance (Reference) @1KHz
360pF
Operating Temperature
－40℃~～＋105℃
Body Length (L)
16.5mm
Body Width (W)
14mm
Body Height (H)
7.92mm
Min. Packaging (Pcs)
150
250
300
400
500
750
