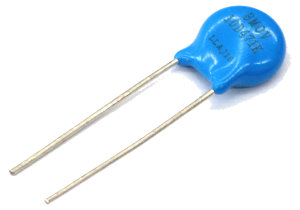

BMOV10D821K
Bencent MOV BMOV10D821K
Model
:
BMOV10D821K
Catalogue
BMOV10D821K Catalogue English (Download)
Add to Basket
In your cart
Add to Basket
Contact us about this product
Description
Description
Manufacturer
Bencent
Model
BMOV10D821K
Overvoltage Protection Components
Metal Oxide Varistors (MOV)
Type
Normal Energy
Maximum Allowable Voltage VAC
510V
Maximum Allowable Voltage VDC
670V
Varistor Voltage 1mA
820(738~902)V
Maximum Clamping Voltage IP
25A
Maximum Clamping Voltage VC
1355V
Withstanding Surge Current
2500A
Maximum Energy 10/1000μs
85J
Rated Power
0.4W
Typical Capacitance (Reference) @1KHz
120pF
Operating Temperature
－40℃~～＋105℃
Body Length (L)
16.5mm
Body Width (W)
14mm
Body Height (H)
8.9mm
Min. Packaging (Pcs)
1000
