BMOV07D511K

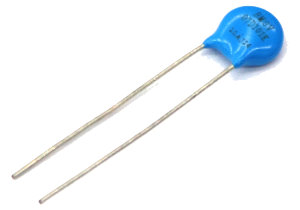

Bencent MOV BMOV07D511K
Model
:
BMOV07D511K
Catalogue
BMOV07D511K Catalogue English (Download)
Add to Basket
In your cart
Add to Basket
Contact us about this product
Description
Description
Manufacturer
Bencent
Model
BMOV07D511K
Overvoltage Protection Components
Metal Oxide Varistors (MOV)
Type
Normal Energy
Maximum Allowable Voltage VAC
320V
Maximum Allowable Voltage VDC
415V
Varistor Voltage 1mA
510(459~561)V
Maximum Clamping Voltage IP
10A
Maximum Clamping Voltage VC
845V
Withstanding Surge Current
1200A
Maximum Energy 10/1000μs
31J
Rated Power
0.25W
Typical Capacitance (Reference) @1KHz
100pF
Operating Temperature
－40℃~～＋105℃
Body Length (L)
13mm
Body Width (W)
10mm
Body Height (H)
7.13mm
Min. Packaging (Pcs)
1000
1500
2000
500
