BMOV07D241K

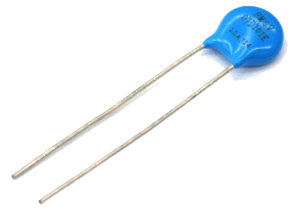

Bencent MOV BMOV07D241K
Model
:
BMOV07D241K
Catalogue
BMOV07D241K Catalogue English (Download)
Add to Basket
In your cart
Add to Basket
Contact us about this product
Description
Description
Manufacturer
Bencent
Model
BMOV07D241K
Overvoltage Protection Components
Metal Oxide Varistors (MOV)
Type
Normal Energy
Maximum Allowable Voltage VAC
150V
Maximum Allowable Voltage VDC
200V
Varistor Voltage 1mA
240(216~264)V
Maximum Clamping Voltage IP
10A
Maximum Clamping Voltage VC
395V
Withstanding Surge Current
1200A
Maximum Energy 10/1000μs
15J
Rated Power
0.25W
Typical Capacitance (Reference) @1KHz
210pF
Operating Temperature
－40℃~～＋105℃
Body Length (L)
13mm
Body Width (W)
10mm
Body Height (H)
5.53mm
Min. Packaging (Pcs)
1000
1500
2000
500
