BMOV07D151K

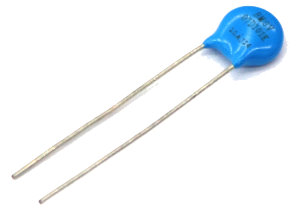

Bencent MOV BMOV07D151K
Model
:
BMOV07D151K
Catalogue
BMOV07D151K Catalogue English (Download)
Add to Basket
In your cart
Add to Basket
Contact us about this product
Description
Description
Manufacturer
Bencent
Model
BMOV07D151K
Overvoltage Protection Components
Metal Oxide Varistors (MOV)
Type
Normal Energy
Maximum Allowable Voltage VAC
95V
Maximum Allowable Voltage VDC
125V
Varistor Voltage 1mA
150(135~165)V
Maximum Clamping Voltage IP
10A
Maximum Clamping Voltage VC
250V
Withstanding Surge Current
1200A
Maximum Energy 10/1000μs
9.7J
Rated Power
0.25W
Typical Capacitance (Reference) @1KHz
330pF
Operating Temperature
－40℃~～＋105℃
Body Length (L)
13mm
Body Width (W)
10mm
Body Height (H)
4.99mm
Min. Packaging (Pcs)
1000
1500
2000
500
