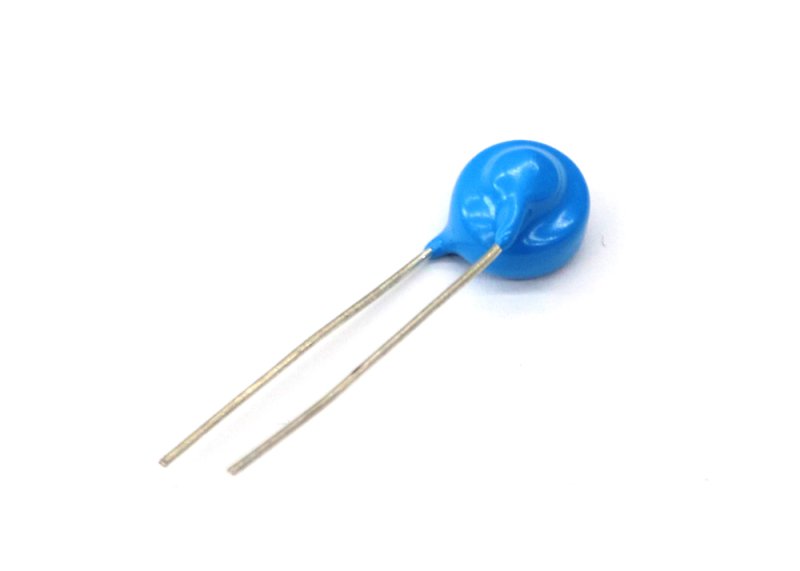

BMG10D101K091Y
Bencent BMG BMG10D101K091Y
Model
:
BMG10D101K091Y
Catalogue
BMG10D101K091Y Catalogue English (Download)
Add to Basket
In your cart
Add to Basket
Contact us about this product
Description
Description
Manufacturer
Bencent
Model
BMG10D101K091Y
Overvoltage Protection Components
Pressure-Sensitive Composite Gas Tubes (BMG)
Recommended Maximum Continuous Operating Voltage (MCOV) VAC
70V
UL Maximum Continuous Operating Voltage (MCOV) VAC
85V
Metal Oxide Varistors Voltage 1mA
100(90~110)V
GDT Voltage 100V/S
90(72~108)V
Platform voltage 1000V/us
≤180V
Peak voltage 1000V/us
≤710V
Withstanding Surge Current
40@1.2/50-8/20μs 4kV-2kA
Maximum Energy 10/1000μs
18J
Typical Capacitance (Reference) @1KHz
5.0pF
Body Length (L)
15mm
Body Width (W)
13mm
Body Height (H)
7.5mm
Min. Packaging (Pcs)
300
400
500
