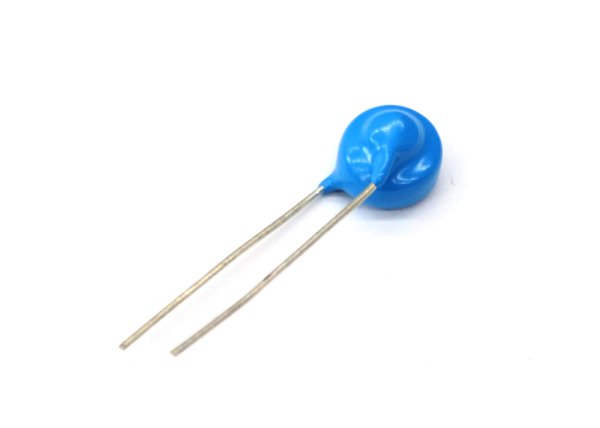

BMG07D241K351Y
Bencent BMG BMG07D241K351Y
Model
:
BMG07D241K351Y
Catalogue
BMG07D241K351Y Catalogue English (Download)
Add to Basket
In your cart
Add to Basket
Contact us about this product
Description
Description
Manufacturer
Bencent
Model
BMG07D241K351Y
Overvoltage Protection Components
Pressure-Sensitive Composite Gas Tubes (BMG)
Recommended Maximum Continuous Operating Voltage (MCOV) VAC
160V
UL Maximum Continuous Operating Voltage (MCOV) VAC
200V
Metal Oxide Varistors Voltage 1mA
240(216~264)V
GDT Voltage 100V/S
350(280~420)V
Platform voltage 1000V/us
≤430V
Peak voltage 1000V/us
≤1020V
Withstanding Surge Current
40@1.2/50-8/20μs 2kV-1kA
Maximum Energy 10/1000μs
21J
Typical Capacitance (Reference) @1KHz
5.0pF
Body Length (L)
10mm
Body Width (W)
9.0mm
Body Height (H)
8.0mm
Min. Packaging (Pcs)
500
600
800
