BMG07D101K351Y

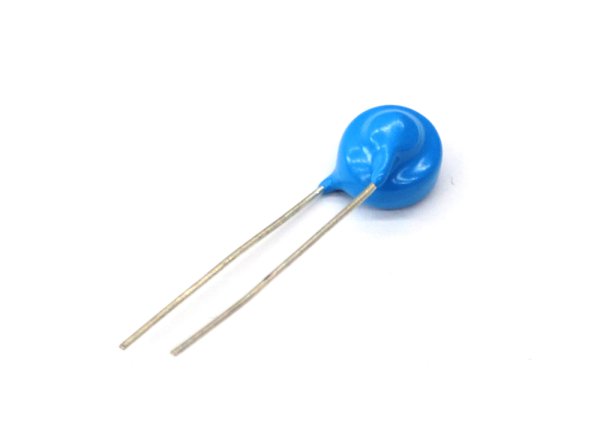

Bencent BMG BMG07D101K351Y
Model
:
BMG07D101K351Y
Catalogue
BMG07D101K351Y Catalogue English (Download)
Add to Basket
In your cart
Add to Basket
Contact us about this product
Description
Description
Manufacturer
Bencent
Model
BMG07D101K351Y
Overvoltage Protection Components
Pressure-Sensitive Composite Gas Tubes (BMG)
Recommended Maximum Continuous Operating Voltage (MCOV) VAC
75V
UL Maximum Continuous Operating Voltage (MCOV) VAC
85V
Metal Oxide Varistors Voltage 1mA
100(90~110)V
GDT Voltage 100V/S
350(280~420)V
Platform voltage 1000V/us
≤180V
Peak voltage 1000V/us
≤1020V
Withstanding Surge Current
40@1.2/50-8/20μs 2kV-1kA
Maximum Energy 10/1000μs
12.5J
Typical Capacitance (Reference) @1KHz
5.0pF
Body Length (L)
10mm
Body Width (W)
9.0mm
Body Height (H)
7.5mm
Min. Packaging (Pcs)
500
600
800
