Protect Components
Overvoltage Protection Components
Gas Discharge Tubes (GDT)
BL075N

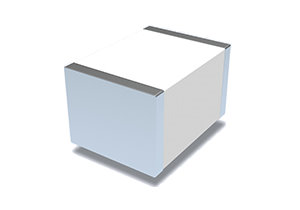

Bencent GDT BL075N
Model
:
BL075N
Add to Basket
In your cart
Add to Basket
Contact us about this product
Description
Description
Manufacturer
Bencent
Model
BL075N
Overvoltage Protection Components
Gas Discharge Tubes (GDT)
DC Breakdown Voltage(VBR) 100V/s
75V
Tolerance of VBR
53-97V
Impulse Spark-over Voltage 1KV/μs
≦650V
Arc Voltage (Va) @1A
~8V
Impulse Discharge Current 8/20μs
1.0KA
Insulation Resistance
≥1GΩ
Insulation resistance Test voltage @ DC
50V
Capacitance Co 0.5VDC@1MHz
≤0.5pF
Body Length (L)
2.9mm
Body Width (W)
2.1mm
Body Height
1.9mm
Application
RS485/232/422
Min. Packaging (Pcs)
2000
