BG301N

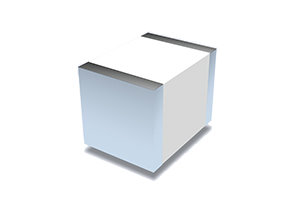

Bencent GDT BG301N
Model
:
BG301N
Catalogue
BG301N Catalogue English (Download)
Add to Basket
In your cart
Add to Basket
Contact us about this product
Description
Description
Manufacturer
Bencent
Model
BG301N
Overvoltage Protection Components
Gas Discharge Tubes (GDT)
DC Breakdown Voltage(VBR) 100V/s
300V
Tolerance of VBR
210-390V
Impulse Spark-over Voltage 1KV/μs
≦850V
Arc Voltage (Va) @1A
~10V
Impulse Discharge Current 8/20μs
1.0KA
Insulation Resistance
≥1GΩ
Insulation resistance Test voltage @ DC
100V
Capacitance Co 0.5VDC@1MHz
≤0.5pF
Body Length (L)
2.9mm
Body Width (W)
2.1mm
Body Height
1.9mm
Application
RS485/232/422
Min. Packaging (Pcs)
2000
