AXF5A4012

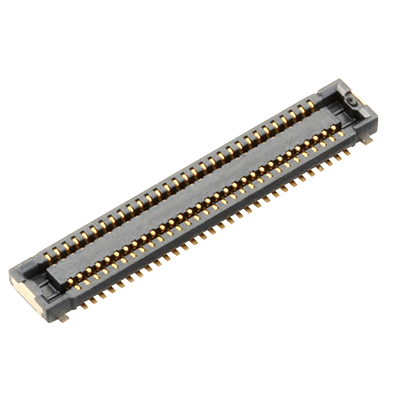

Panasonic A35P Series AXF5A4012
Model
:
AXF5A4012
Add to Basket
In your cart
Add to Basket
Contact us about this product
Description
Description
Manufacturer
Panasonic
Model
AXF5A4012
Connectors
Board to Board Connectors
Series
A35P
Connector Type
For High Current
Socket/Header
Socket
Terminal pitch (mm)
0.35
No. of pins
40
Mated Height (mm)
0.8
Body Length (L) (mm)
9.35
Short width (D) (mm)
2.5
Body Height (H) (mm)
0.77
Rated current [ Power contact ] (A)
1.5 A/pin contact x 4 pin contacts or 1.25 A/pin contact x 8 pin contacts
Min. Packaging (Pcs)
5000
The other side
AXF6A4012
