Inductors
Inductor for Power Lines
AMWPQ2815L6R8KP
Weight:
0
g

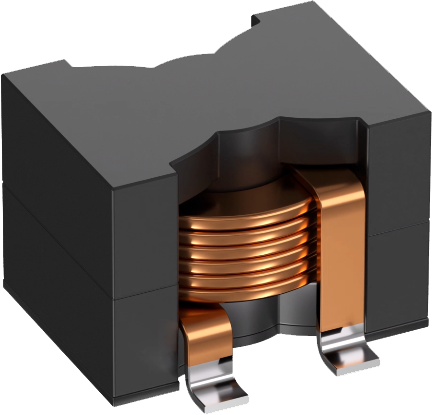

Sunlord AMWPQ2815L Series AMWPQ2815L6R8KP
Model
:
AMWPQ2815L6R8KP
Catalogue
AMWPQ2815L Series Catalogue English (Download)
AMWPQ2815L Series Catalogue Chinese (Download)
Add to Basket
In your cart
Add to Basket
Contact us about this product
Description
Description
Manufacturer
Sunlord
Model
AMWPQ2815L6R8KP
General
Series
AMWPQ2815L
Structure
Wire Wound
Automotive
Yes
Dimensions
Length
26.50mm
Width
27.00mm
Thick Max.
15.50mm
Electrical
Inductance
6.8μH
Inductance Tolerance
±10%
L/Q Test Freq.
0.1MHz/0.1V
Heat Rating Current(Irms)
34A
Saturation Current(Isat)
22A
DCR Max. (Ω)
0.0019Ω
SRF
/
Quality Factor (Q) Min.
/
Packaging
Min. Packaging (Pcs)
-
