AMP0804H1R8MT
Weight:
0
g

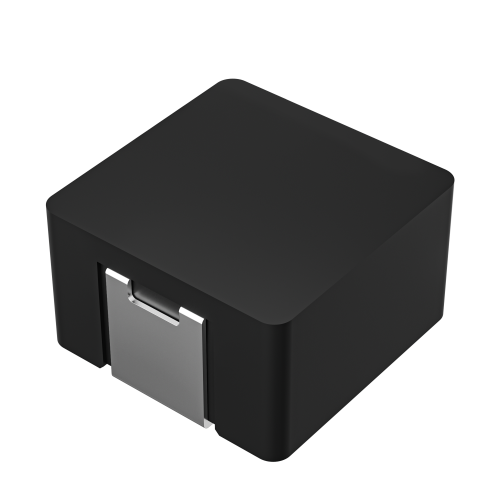

Sunlord AMP0804H Series AMP0804H1R8MT
Model
:
AMP0804H1R8MT
Catalogue
AMP0804H Series Catalogue English (Download)
AMP0804H Series Catalogue Chinese (Download)
Add to Basket
In your cart
Add to Basket
Contact us about this product
Description
Description
Manufacturer
Sunlord
Model
AMP0804H1R8MT
General
Series
AMP0804H
Structure
Wire Wound
Automotive
Yes
Dimensions
Length
8.80mm
Width
8.20mm
Thick Max.
3.80mm
Electrical
Inductance
1.8μH
Inductance Tolerance
±20%
L/Q Test Freq.
100KHz/1V
Heat Rating Current(Irms)
12.5A
Saturation Current(Isat)
13A
DCR Max. (Ω)
0.009Ω
SRF
/
Quality Factor (Q) Min.
/
Packaging
Min. Packaging (Pcs)
-
