AMP0703H1R5MT

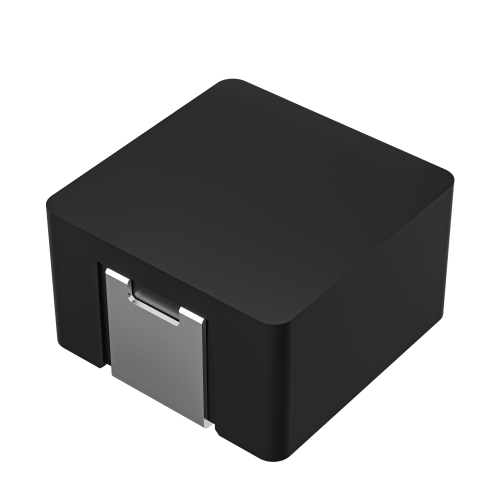

Sunlord AMP0703H Series AMP0703H1R5MT
Model
:
AMP0703H1R5MT
Catalogue
AMP0703H Series Catalogue English (Download)
AMP0703H Series Catalogue Chinese (Download)
Add to Basket
In your cart
Add to Basket
Contact us about this product
Description
Description
Manufacturer
Sunlord
Model
AMP0703H1R5MT
Inductors
Series
AMP0703H
Structure
Wire Wound
Inductance
1.5μH
Inductance Tolerance
±20%
Quality Q
/
L/Q Test Freq. (MHz)
100KHz/1V
SRF (MHz)
/
DCR Max. (Ω)
0.01
Saturation Current (A) Isat
15.2
Heat Rating Current (A) Irms
11
Body Length (mm)
7.6
Body Width (mm)
7
Body Thick (mm)
2.8
Automotive
Yes
Min. Packaging (Pcs)
-
