AMP0503HR33MT

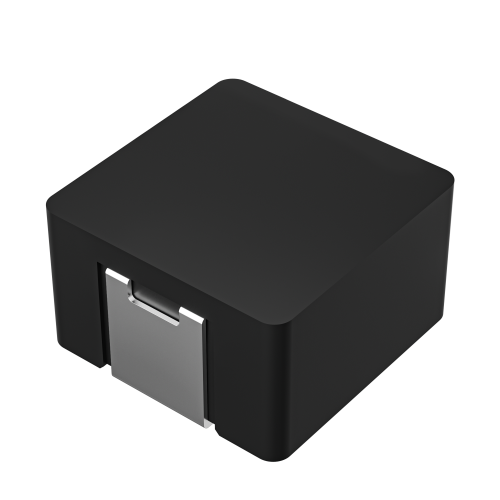

Sunlord AMP0503H Series AMP0503HR33MT
Model
:
AMP0503HR33MT
Catalogue
AMP0503H Series Catalogue English (Download)
AMP0503H Series Catalogue Chinese (Download)
Add to Basket
In your cart
Add to Basket
Contact us about this product
Description
Description
Manufacturer
Sunlord
Model
AMP0503HR33MT
Inductors
Series
AMP0503H
Structure
Wire Wound
Inductance
0.33μH
Inductance Tolerance
±20%
Quality Q
/
L/Q Test Freq. (MHz)
100KHz/1V
SRF (MHz)
/
DCR Max. (Ω)
0.0055
Saturation Current (A) Isat
14.4
Heat Rating Current (A) Irms
13
Body Length (mm)
5.6
Body Width (mm)
5.2
Body Thick (mm)
2.8
Automotive
Yes
Min. Packaging (Pcs)
-
