Inductors
Inductor for Power Lines
AMP0503H1R5MT

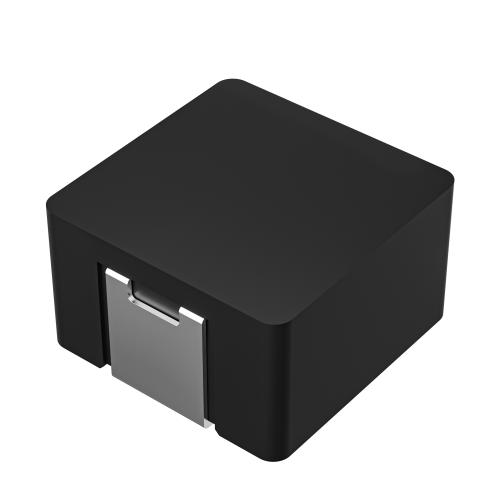

Sunlord AMP0503H Series AMP0503H1R5MT
Model
:
AMP0503H1R5MT
Catalogue
AMP0503H Series Catalogue English (Download)
AMP0503H Series Catalogue Chinese (Download)
Add to Basket
In your cart
Add to Basket
Contact us about this product
Description
Description
Manufacturer
Sunlord
Model
AMP0503H1R5MT
Inductors
Series
AMP0503H
Structure
Wire Wound
Inductance
1.5μH
Inductance Tolerance
±20%
Quality Q
/
L/Q Test Freq. (MHz)
100KHz/1V
SRF (MHz)
/
DCR Max. (Ω)
0.025
Saturation Current (A) Isat
7.2
Heat Rating Current (A) Irms
7.2
Body Length (mm)
5.6
Body Width (mm)
5.2
Body Thick (mm)
2.8
Automotive
Yes
Min. Packaging (Pcs)
-
