Capacitor
Aluminum Electrolytic Capacitors
EEEFKV121XSL

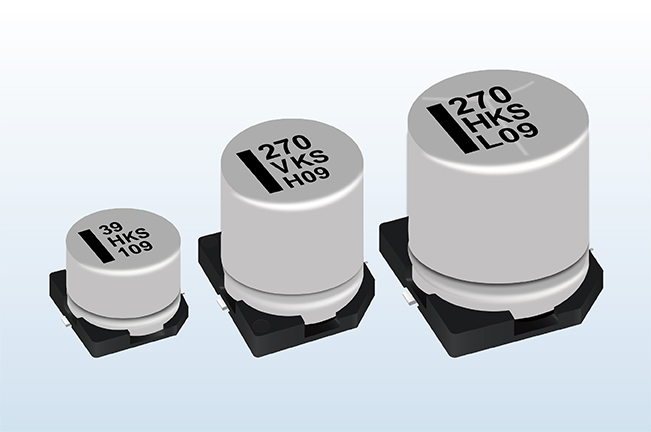

Panasonic FKS [HF] (Standard/High temp. reflow) Series EEEFKV121XSL
Model
:
EEEFKV121XSL
Catalogue
FKS [HF] (Standard/High temp. reflow) Series Catalogue English (Download)
FKS [HF] (Standard/High temp. reflow) Series Catalogue Chinese (Download)
Add to Basket
In your cart
Add to Basket
Contact us about this product
Description
Description
Manufacturer
Panasonic
Model
EEEFKV121XSL
General
Series
FKS [HF] (Standard/High temp. reflow)
Mounting
Mounting Method
Surface Mount
Dimensions
Diameter
6.30mm
Length
7.70mm
Electrical
Capacitance
120µf
Leakage current .Max
42µA
Rated ripple current freq.
100000Hz
Rated ripple current
280.0mA
Rated voltage
35.0V
Polarity type
Polar
Environmental
Category temperature range
－55℃ ～ ＋105℃
Packaging
Packing Specification
Embossed carrier taping (reel packing)
