BM801M

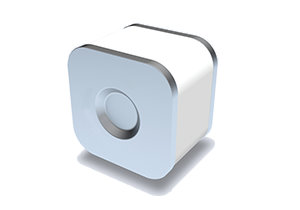

Bencent GDT BM801M
Model
:
BM801M
Catalogue
BM801M Catalogue English (Download)
Add to Basket
In your cart
Add to Basket
Contact us about this product
Description
Description
Manufacturer
Bencent
Model
BM801M
Overvoltage Protection Components
Gas Discharge Tubes (GDT)
DC Breakdown Voltage(VBR) 100V/s
800V
Tolerance of VBR
640-960V
Impulse Spark-over Voltage 1KV/μs
≦1200V
Arc Voltage (Va) @1A
~15V
Impulse Discharge Current 8/20μs
20KA
Insulation Resistance
≥1GΩ
Insulation resistance Test voltage @ DC
100V
Capacitance Co 0.5VDC@1MHz
≤1.5pF
Body Length (L)
8.3mm
Body Width (W)
8.3mm
Body Height
6.0mm
Application
AC Power
Min. Packaging (Pcs)
500
