6SVPC390M
Weight:
0.52
g

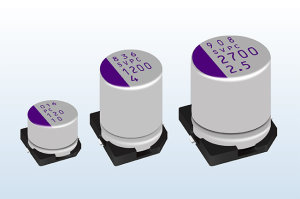

Panasonic SVPC Series 6SVPC390M
Model
:
6SVPC390M
Catalogue
SVPC Series Catalogue English (Download)
SVPC Series Catalogue Chinese (Download)
SVPC Series Catalogue Japanese (Download)
3D Data
3D 6SVPC390M (Download)
Add to Basket
In your cart
Add to Basket
Contact us about this product
Description
Description
Manufacturer
Panasonic
Model
6SVPC390M
General
Series
SVPC
Mounting
Mounting Method
Surface mount type (vertical mount style)
Dimensions
Size Code
E7
Diameter
8.00mm
Length
6.90mm
Electrical
Capacitance
390.00µf
Endurance@Temp.-1
2000@105°C
Rated Ripple Current-1
3220mArms
Rated ripple current-1 freq.
100kHz
Rated Ripple Current-1 Temp.
105°C
Rated Ripple Current-2
#NAME?
Endurance
2000h
Capacitance Tolerance
±20%
Polarity type
Polar
Dissipation Factor (DF) Max.
0.12
Rated voltage
6.3V
Equivalent Series Resistance (E.S.R.)
22mΩ
Equivalent Series Resistance (E.S.R.) freq.
100kHz
Leakage current .Max
491µA
Environmental
Category temperature range
－55 ～ ＋105°C
Packaging
Packing Specification
Embossed carrier taping (reel packing)
Min. Packaging (Pcs)
1000
