Capacitor
Solid Capacitor
50SVPT39M
Weight:
0.86
g

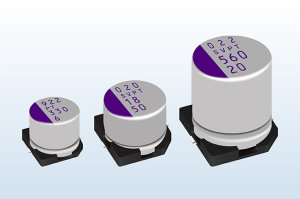

Panasonic SVPT Series 50SVPT39M
Model
:
50SVPT39M
Catalogue
SVPT Series Catalogue English (Download)
SVPT Series Catalogue Chinese (Download)
SVPT Series Catalogue Japanese (Download)
3D Data
3D 50SVPT39M (Download)
Add to Basket
In your cart
Add to Basket
Contact us about this product
Description
Description
Manufacturer
Panasonic
Model
50SVPT39M
General
Series
SVPT
Mounting
Mounting Method
Surface mount type (vertical mount style)
Dimensions
Size Code
E12
Diameter
8.00mm
Length
11.90mm
Electrical
Capacitance
39.00µf
Endurance@Temp.-1
20000@105°C
Rated Ripple Current-1
3800mArms
Rated ripple current-1 freq.
100kHz
Rated Ripple Current-1 Temp.
105°C
Rated Ripple Current-2
#NAME?
Endurance
20000h
Capacitance Tolerance
±20%
Polarity type
Polar
Dissipation Factor (DF) Max.
0.12
Rated voltage
50.0V
Equivalent Series Resistance (E.S.R.)
25mΩ
Equivalent Series Resistance (E.S.R.) freq.
100kHz
Leakage current .Max
390µA
Environmental
Category temperature range
－55 ～ ＋105°C
Packaging
Packing Specification
Embossed carrier taping (reel packing)
Min. Packaging (Pcs)
400
