Capacitor
Tantalum Capacitor
4TCF470ML
Weight:
0
g

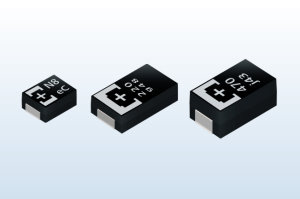

Panasonic TC Series 4TCF470ML
Model
:
4TCF470ML
Catalogue
TC Series Catalogue English (Download)
TZ Series Catalogue Chinese (Download)
TC Series Catalogue Japanese (Download)
3D Data
3D 4TCF470ML (Download)
Add to Basket
In your cart
Add to Basket
Contact us about this product
Description
Description
Manufacturer
Panasonic
Model
4TCF470ML
General
Series
TC
Mounting
Mounting Method
Surface mount type (rectangular style)
Dimensions
Size Code
D3L
Length
7.30mm
Width
4.30mm
Height
2.80mm
Electrical
Capacitance
470.00µf
Endurance@Temp.-1
1000h@125°C
Rated Ripple Current-1
4400mArms
Rated ripple current-1 freq.
100kHz
Rated Ripple Current-1 Temp.
45°C
Endurance
1000h
Capacitance Tolerance
±20%
Polarity type
Polar
Dissipation Factor (DF) Max.
0.1
Rated voltage
4.0V
Equivalent Series Resistance (E.S.R.)
10mΩ
Equivalent Series Resistance (E.S.R.) freq.
100kHz
Leakage current .Max
188µA
Environmental
Category temperature range
－55 ～ ＋125°C
Packaging
Min. Packaging (Pcs)
2500
