Capacitor
Solid Capacitor
4SVPS270M
Weight:
0.52
g

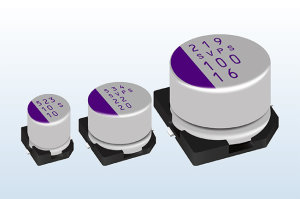

Panasonic SVPS Series 4SVPS270M
Model
:
4SVPS270M
Catalogue
SVPS Series Catalogue English (Download)
SVPS Series Catalogue Chinese (Download)
SVPS Series Catalogue Japanese (Download)
3D Data
3D 4SVPS270M (Download)
Add to Basket
In your cart
Add to Basket
Contact us about this product
Description
Description
Manufacturer
Panasonic
Model
4SVPS270M
General
Series
SVPS
Mounting
Mounting Method
Surface mount type (vertical mount style)
Dimensions
Size Code
E7
Diameter
8.00mm
Length
6.90mm
Electrical
Capacitance
270.00µf
Endurance@Temp.-1
5000@105°C
Rated Ripple Current-1
3220mArms
Rated ripple current-1 freq.
100kHz
Rated Ripple Current-1 Temp.
105°C
Rated Ripple Current-2
#NAME?
Endurance
5000h
Capacitance Tolerance
±20%
Polarity type
Polar
Dissipation Factor (DF) Max.
0.12
Rated voltage
4.0V
Equivalent Series Resistance (E.S.R.)
22mΩ
Equivalent Series Resistance (E.S.R.) freq.
100kHz
Leakage current .Max
500µA
Environmental
Category temperature range
－55 ～ ＋105°C
Packaging
Packing Specification
Embossed carrier taping (reel packing)
Min. Packaging (Pcs)
1000
