Capacitor
Tantalum Capacitor
35TDC10MD2
Weight:
0
g

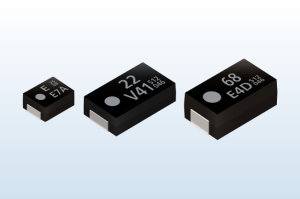

Panasonic TDC Series 35TDC10MD2
Model
:
35TDC10MD2
Catalogue
TDC Series Catalogue English (Download)
TZ Series Catalogue Chinese (Download)
TDC Series Catalogue Japanese (Download)
3D Data
3D 35TDC10MD2 (Download)
Add to Basket
In your cart
Add to Basket
Contact us about this product
Description
Description
Manufacturer
Panasonic
Model
35TDC10MD2
General
Series
TDC
Mounting
Mounting Method
Surface mount type (rectangular style)
Dimensions
Size Code
D2
Length
7.30mm
Width
4.30mm
Height
1.90mm
Electrical
Capacitance
10.00µf
Endurance@Temp.-1
1000h@125°C
Rated Ripple Current-1
820mArms
Rated ripple current-1 freq.
100kHz
Rated Ripple Current-1 Temp.
105°C
Endurance
1000h
Capacitance Tolerance
±20%
Polarity type
Polar
Dissipation Factor (DF) Max.
0.1
Rated voltage
35.0V
Equivalent Series Resistance (E.S.R.)
180mΩ
Equivalent Series Resistance (E.S.R.) freq.
100kHz
Leakage current .Max
35µA
Environmental
Category temperature range
－55 ～ ＋125°C
Packaging
Min. Packaging (Pcs)
3000
