35SVPF22M
Weight:
0.27
g

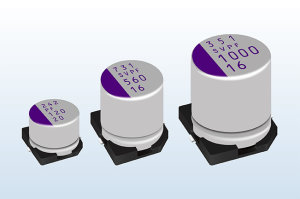

Panasonic SVPF Series 35SVPF22M
Model
:
35SVPF22M
Catalogue
SVPF Series Catalogue English (Download)
SVPF Series Catalogue Chinese (Download)
SVPF Series Catalogue Japanese (Download)
3D Data
3D 35SVPF22M (Download)
Add to Basket
In your cart
Add to Basket
Contact us about this product
Description
Description
Manufacturer
Panasonic
Model
35SVPF22M
General
Series
SVPF
Mounting
Mounting Method
Surface mount type (vertical mount style)
Dimensions
Size Code
C6
Diameter
6.30mm
Length
5.90mm
Electrical
Capacitance
22.00µf
Endurance@Temp.-1
5000@105°C
Rated Ripple Current-1
2600mArms
Rated ripple current-1 freq.
100kHz
Rated Ripple Current-1 Temp.
105°C
Rated Ripple Current-2
#NAME?
Endurance
5000h
Capacitance Tolerance
±20%
Polarity type
Polar
Dissipation Factor (DF) Max.
0.12
Rated voltage
35.0V
Equivalent Series Resistance (E.S.R.)
35mΩ
Equivalent Series Resistance (E.S.R.) freq.
100kHz
Leakage current .Max
154µA
Environmental
Category temperature range
－55 ～ ＋105°C
Packaging
Packing Specification
Embossed carrier taping (reel packing)
Min. Packaging (Pcs)
1000
