35SVPD22M
Weight:
0.86
g

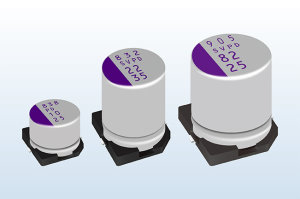

Panasonic SVPD Series 35SVPD22M
Model
:
35SVPD22M
Catalogue
SVPD Series Catalogue English (Download)
SVPD Series Catalogue Chinese (Download)
SVPD Series Catalogue Japanese (Download)
3D Data
3D 35SVPD22M (Download)
Add to Basket
In your cart
Add to Basket
Contact us about this product
Description
Description
Manufacturer
Panasonic
Model
35SVPD22M
General
Series
SVPD
Mounting
Mounting Method
Surface mount type (vertical mount style)
Dimensions
Size Code
E12
Diameter
8.00mm
Length
11.90mm
Electrical
Capacitance
22.00µf
Endurance@Temp.-1
2000@125°C
Rated Ripple Current-1
2300mArms
Rated ripple current-1 freq.
100kHz
Rated Ripple Current-1 Temp.
T≦105°C
Rated Ripple Current-2
700mArms
Rated ripple current-2 freq.
100kHz
Rated Ripple Current-2 Temp.
105°C
Endurance
2000h
Capacitance Tolerance
±20%
Polarity type
Polar
Dissipation Factor (DF) Max.
0.12
Rated voltage
35.0V
Equivalent Series Resistance (E.S.R.)
50mΩ
Equivalent Series Resistance (E.S.R.) freq.
100kHz
Leakage current .Max
154µA
Environmental
Category temperature range
－55 ～ ＋125°C
Packaging
Packing Specification
Embossed carrier taping (reel packing)
Min. Packaging (Pcs)
400
