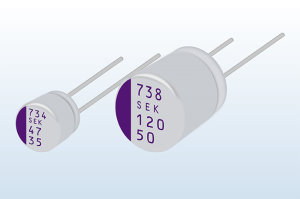

35SEK47M+S
Weight:
0.35
g
Panasonic SEK Series 35SEK47M+S
Model
:
35SEK47M+S
Catalogue
SEK Series Catalogue English (Download)
SEK Series Catalogue Chinese (Download)
SEK Series Catalogue Japanese (Download)
3D Data
3D 35SEK47M+S (Download)
Add to Basket
In your cart
Add to Basket
Contact us about this product
Description
Description
Manufacturer
Panasonic
Model
35SEK47M+S
General
Series
SEK
Mounting
Mounting Method
Radial lead type
Dimensions
Lead (terminal) Pitch
2.5mm
Size Code
C6
Diameter
6.30mm
Length
6.00mm
Electrical
Capacitance
47.00µf
Endurance@Temp.-1
1000@125°C
Rated Ripple Current-1
2950mArms
Rated ripple current-1 freq.
100kHz
Rated Ripple Current-1 Temp.
T≦105°C
Rated Ripple Current-2
930mArms
Rated ripple current-2 freq.
100kHz
Rated Ripple Current-2 Temp.
105°C
Endurance
1000h
Capacitance Tolerance
±20%
Polarity type
Polar
Dissipation Factor (DF) Max.
0.12
Rated voltage
35.0V
Equivalent Series Resistance (E.S.R.)
27mΩ
Equivalent Series Resistance (E.S.R.) freq.
100kHz
Leakage current .Max
329µA
Mechanical
Number of Terminals
2
Environmental
Category temperature range
－55 ～ ＋125°C
Packaging
Packing Specification
Lead terminal taping (ammo packing)
Min. Packaging (Pcs)
1500
