2SEPC820MW+TSS
Weight:
0.47
g

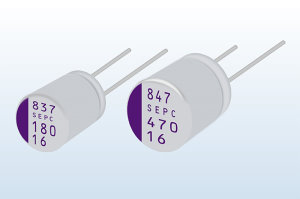

Panasonic SEPC Series 2SEPC820MW+TSS
Model
:
2SEPC820MW+TSS
Catalogue
SEPC Series Catalogue English (Download)
SEPC Series Catalogue Chinese (Download)
SEPC Series Catalogue Japanese (Download)
3D Data
3D 2SEPC820MW+TSS (Download)
Add to Basket
In your cart
Add to Basket
Contact us about this product
Description
Description
Manufacturer
Panasonic
Model
2SEPC820MW+TSS
General
Series
SEPC
Mounting
Mounting Method
Radial lead type
Dimensions
Lead (terminal) Pitch
2.5mm
Size Code
C9
Diameter
6.30mm
Length
9.00mm
Electrical
Capacitance
820.00µf
Endurance@Temp.-1
5000@105°C
Rated Ripple Current-1
5600mArms
Rated ripple current-1 freq.
100kHz
Rated Ripple Current-1 Temp.
105°C
Rated Ripple Current-2
#NAME?
Endurance
5000h
Capacitance Tolerance
±20%
Polarity type
Polar
Dissipation Factor (DF) Max.
0.1
Rated voltage
2.5V
Equivalent Series Resistance (E.S.R.)
7mΩ
Equivalent Series Resistance (E.S.R.) freq.
100kHz
Leakage current .Max
500µA
Mechanical
Number of Terminals
2
Environmental
Category temperature range
－55 ～ ＋105°C
Packaging
Packing Specification
Lead terminal taping (ammo packing)
Min. Packaging (Pcs)
1500
