2R5TAE330MI
Weight:
0
g

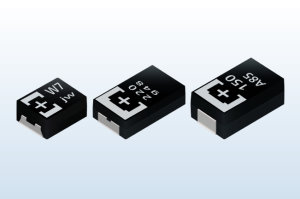

Panasonic TA Series 2R5TAE330MI
Model
:
2R5TAE330MI
Catalogue
TA Series Catalogue English (Download)
TZ Series Catalogue Chinese (Download)
TA Series Catalogue Japanese (Download)
3D Data
3D 2R5TAE330MI (Download)
Add to Basket
In your cart
Add to Basket
Contact us about this product
Description
Description
Manufacturer
Panasonic
Model
2R5TAE330MI
General
Series
TA
Mounting
Mounting Method
Surface mount type (rectangular style)
Dimensions
Size Code
D2E
Length
7.30mm
Width
4.30mm
Height
1.80mm
Electrical
Capacitance
330.00µf
Endurance@Temp.-1
2000h@105°C
Rated Ripple Current-1
2800mArms
Rated ripple current-1 freq.
100kHz
Rated Ripple Current-1 Temp.
45°C
Endurance
2000h
Capacitance Tolerance
±20%
Polarity type
Polar
Dissipation Factor (DF) Max.
0.1
Rated voltage
2.5V
Equivalent Series Resistance (E.S.R.)
18mΩ
Equivalent Series Resistance (E.S.R.) freq.
100kHz
Leakage current .Max
82.5µA
Environmental
Category temperature range
－55 ～ ＋105°C
Packaging
Min. Packaging (Pcs)
3000
