Capacitor
Solid Capacitor
2R5SVPE330MY
Weight:
0.18
g

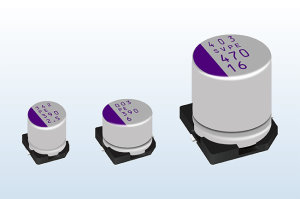

Panasonic SVPE Series 2R5SVPE330MY
Model
:
2R5SVPE330MY
Catalogue
SVPE Series Catalogue English (Download)
SVPE Series Catalogue Chinese (Download)
SVPE Series Catalogue Japanese (Download)
3D Data
3D 2R5SVPE330MY (Download)
Add to Basket
In your cart
Add to Basket
Contact us about this product
Description
Description
Manufacturer
Panasonic
Model
2R5SVPE330MY
General
Series
SVPE
Mounting
Mounting Method
Surface mount type (vertical mount style)
Dimensions
Size Code
B6
Diameter
5.00mm
Length
5.90mm
Electrical
Capacitance
330.00µf
Endurance@Temp.-1
2000@105°C
Rated Ripple Current-1
3860mArms
Rated ripple current-1 freq.
100kHz
Rated Ripple Current-1 Temp.
105°C
Rated Ripple Current-2
#NAME?
Endurance
2000h
Capacitance Tolerance
±20%
Polarity type
Polar
Dissipation Factor (DF) Max.
0.12
Rated voltage
2.5V
Equivalent Series Resistance (E.S.R.)
10mΩ
Equivalent Series Resistance (E.S.R.) freq.
100kHz
Leakage current .Max
500µA
Environmental
Category temperature range
－55 ～ ＋105°C
Packaging
Packing Specification
Embossed carrier taping (reel packing)
Min. Packaging (Pcs)
1500
