20SEPF390M+C3
Weight:
0.89
g

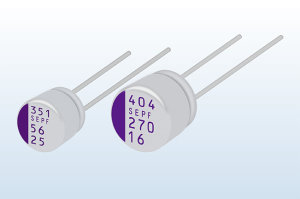

Panasonic SEPF Series 20SEPF390M+C3
Model
:
20SEPF390M+C3
Catalogue
SEPF Series Catalogue English (Download)
SEPF Series Catalogue Chinese (Download)
SEPF Series Catalogue Japanese (Download)
3D Data
3D 20SEPF390M+C3 (Download)
Add to Basket
In your cart
Add to Basket
Contact us about this product
Description
Description
Manufacturer
Panasonic
Model
20SEPF390M+C3
General
Series
SEPF
Mounting
Mounting Method
Radial lead type
Dimensions
Lead (terminal) Pitch
3.5mm
Size Code
E12
Diameter
8.00mm
Length
12.00mm
Electrical
Capacitance
390.00µf
Endurance@Temp.-1
5000@105°C
Rated Ripple Current-1
4950mArms
Rated ripple current-1 freq.
100kHz
Rated Ripple Current-1 Temp.
105°C
Rated Ripple Current-2
#NAME?
Endurance
5000h
Capacitance Tolerance
±20%
Polarity type
Polar
Dissipation Factor (DF) Max.
0.12
Rated voltage
20.0V
Equivalent Series Resistance (E.S.R.)
14mΩ
Equivalent Series Resistance (E.S.R.) freq.
100kHz
Leakage current .Max
1560µA
Mechanical
Number of Terminals
2
Environmental
Category temperature range
－55 ～ ＋105°C
Packaging
Packing Specification
Lead terminal cutting (bulk, bag packing)
Min. Packaging (Pcs)
200
