Weight: 0.35 g

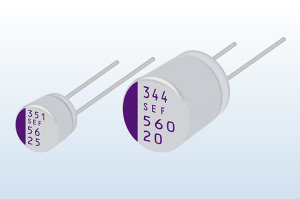

Panasonic SEF Series 20SEF120M+S

Model: 20SEF120M+S

Catalogue

Catalogue

SEF Series Catalogue English (Download)

SEF Series Catalogue Chinese (Download)

SEF Series Catalogue Japanese (Download)

3D Data

3D Data

3D 20SEF120M+S (Download)

Contact us about this product

Manufacturer
Panasonic

Model
20SEF120M+S

General

Series
SEF

Mounting

Mounting Method
Radial lead type

Dimensions

Lead (terminal) Pitch
2.5mm

Size Code
C6

Diameter
6.30mm

Length
6.00mm

Electrical

Capacitance
120.00µf

Endurance@Temp.-1
1000@125°C

Rated Ripple Current-1
3200mArms

Rated ripple current-1 freq.
100kHz

Rated Ripple Current-1 Temp.
T≦105°C

Rated Ripple Current-2
1010mArms

Rated ripple current-2 freq.
100kHz

Rated Ripple Current-2 Temp.
105°C

Endurance
1000h

Capacitance Tolerance
±20%

Polarity type
Polar

Dissipation Factor (DF) Max.
0.12

Rated voltage
20.0V

Equivalent Series Resistance (E.S.R.)
25mΩ

Equivalent Series Resistance (E.S.R.) freq.
100kHz

Leakage current .Max
480µA

Mechanical

Number of Terminals
2

Environmental

Category temperature range
－55 ～＋125°C

Packaging

Packing Specification
Lead terminal taping (ammo packing)

Min. Packaging (Pcs)
1500
