Capacitor
Tantalum Capacitor
1CTQC15173F1
Weight:
0
g

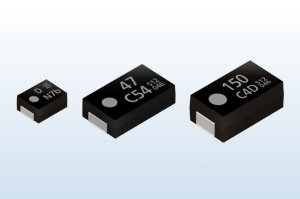

Panasonic TQC Series 1CTQC15173F1
Model
:
1CTQC15173F1
Catalogue
TQC Series Catalogue English (Download)
TZ Series Catalogue Chinese (Download)
TQC Series Catalogue Japanese (Download)
3D Data
3D 1CTQC15173F1 (Download)
Add to Basket
In your cart
Add to Basket
Contact us about this product
Description
Description
Manufacturer
Panasonic
Model
1CTQC15173F1
General
Series
TQC
Mounting
Mounting Method
Surface mount type (rectangular style)
Dimensions
Size Code
D2
Length
7.30mm
Width
4.30mm
Height
1.90mm
Electrical
Capacitance
150.00µf
Endurance@Temp.-1
2000h@105°C
Rated Ripple Current-1
1500mArms
Rated ripple current-1 freq.
100kHz
Rated Ripple Current-1 Temp.
105°C
Endurance
2000h
Capacitance Tolerance
±20%
Polarity type
Polar
Dissipation Factor (DF) Max.
0.15
Rated voltage
16.0V
Equivalent Series Resistance (E.S.R.)
70mΩ
Equivalent Series Resistance (E.S.R.) freq.
100kHz
Leakage current .Max
240µA
Environmental
Category temperature range
－55 ～ ＋105°C
Packaging
Min. Packaging (Pcs)
3000
