16SEF560M
Weight:
0.89
g

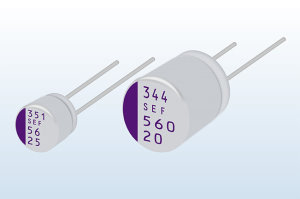

Panasonic SEF Series 16SEF560M
Model
:
16SEF560M
Catalogue
SEF Series Catalogue English (Download)
SEF Series Catalogue Chinese (Download)
SEF Series Catalogue Japanese (Download)
3D Data
3D 16SEF560M (Download)
Add to Basket
In your cart
Add to Basket
Contact us about this product
Description
Description
Manufacturer
Panasonic
Model
16SEF560M
General
Series
SEF
Mounting
Mounting Method
Radial lead type
Dimensions
Lead (terminal) Pitch
3.5mm
Size Code
E12
Diameter
8.00mm
Length
12.00mm
Electrical
Capacitance
560.00µf
Endurance@Temp.-1
1000@125°C
Rated Ripple Current-1
4950mArms
Rated ripple current-1 freq.
100kHz
Rated Ripple Current-1 Temp.
T≦105°C
Rated Ripple Current-2
1560mArms
Rated ripple current-2 freq.
100kHz
Rated Ripple Current-2 Temp.
105°C
Endurance
1000h
Capacitance Tolerance
±20%
Polarity type
Polar
Dissipation Factor (DF) Max.
0.12
Rated voltage
16.0V
Equivalent Series Resistance (E.S.R.)
14mΩ
Equivalent Series Resistance (E.S.R.) freq.
100kHz
Leakage current .Max
1792µA
Mechanical
Number of Terminals
2
Environmental
Category temperature range
－55 ～ ＋125°C
Packaging
Packing Specification
No lead terminal forming (bulk, bag packing)
Min. Packaging (Pcs)
200
