16SEF1000M+3
Weight:
1.37
g

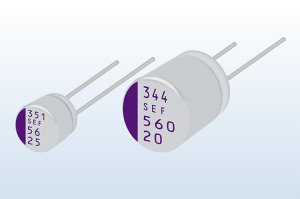

Panasonic SEF Series 16SEF1000M+3
Model
:
16SEF1000M+3
Catalogue
SEF Series Catalogue English (Download)
SEF Series Catalogue Chinese (Download)
SEF Series Catalogue Japanese (Download)
3D Data
3D 16SEF1000M+3 (Download)
Add to Basket
In your cart
Add to Basket
Contact us about this product
Description
Description
Manufacturer
Panasonic
Model
16SEF1000M+3
General
Series
SEF
Mounting
Mounting Method
Radial lead type
Dimensions
Lead (terminal) Pitch
5.0mm
Size Code
F13
Diameter
10.00mm
Length
13.00mm
Electrical
Capacitance
1000.00µf
Endurance@Temp.-1
1000@125°C
Rated Ripple Current-1
5400mArms
Rated ripple current-1 freq.
100kHz
Rated Ripple Current-1 Temp.
T≦105°C
Rated Ripple Current-2
1700mArms
Rated ripple current-2 freq.
100kHz
Rated Ripple Current-2 Temp.
105°C
Endurance
1000h
Capacitance Tolerance
±20%
Polarity type
Polar
Dissipation Factor (DF) Max.
0.12
Rated voltage
16.0V
Equivalent Series Resistance (E.S.R.)
12mΩ
Equivalent Series Resistance (E.S.R.) freq.
100kHz
Leakage current .Max
3200µA
Mechanical
Number of Terminals
2
Environmental
Category temperature range
－55 ～ ＋125°C
Packaging
Packing Specification
Lead terminal cutting (bulk, bag packing)
Min. Packaging (Pcs)
200
