Capacitor
Tantalum Capacitor
10TVE68M
Weight:
0
g

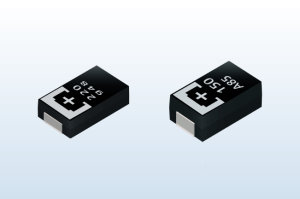

Panasonic TV Series 10TVE68M
Model
:
10TVE68M
Catalogue
TV Series Catalogue English (Download)
TZ Series Catalogue Chinese (Download)
TV Series Catalogue Japanese (Download)
3D Data
3D 10TVE68M (Download)
Add to Basket
In your cart
Add to Basket
Contact us about this product
Description
Description
Manufacturer
Panasonic
Model
10TVE68M
General
Series
TV
Mounting
Mounting Method
Surface mount type (rectangular style)
Dimensions
Size Code
D2E
Length
7.30mm
Width
4.30mm
Height
1.80mm
Electrical
Capacitance
68.00µf
Endurance@Temp.-1
1000h@125°C
Endurance@Temp.-2
2000h@105°C
Rated Ripple Current-1
2400mArms
Rated ripple current-1 freq.
100kHz
Rated Ripple Current-1 Temp.
45°C
Endurance
1000h (125°C), 2000 (105°C)
Capacitance Tolerance
±20%
Polarity type
Polar
Dissipation Factor (DF) Max.
0.1
Rated voltage
10.0V
Equivalent Series Resistance (E.S.R.)
25mΩ
Equivalent Series Resistance (E.S.R.) freq.
100kHz
Leakage current .Max
68µA
Environmental
Category temperature range
－55 ～ ＋125°C
Packaging
Min. Packaging (Pcs)
3000
